230 LE3 Sport

* PREVIOUS MODEL YEAR IMAGES SHOWN

2023

230 LE3 Sport

w/ 250 L Verado® Mercury® Verado®

View Price w/ Prep & Freight:

NO HAGGLE NO HASSLE® National Price Base Price	$90995 USD

NO HAGGLE NO HASSLE® National Price

Base Price

$90995

USD

Your Price w/ Prep & Freight:	USD

BUILD YOUR OWN

Overview

Welcome to Sport Mode. With the Sport specification, you’ve added a full dose of exclusive features that bring you more control, more excitement and more of everything that makes being on the water magical. Engaging performance meshes with captivating style to produce an unmistakable presence on any waterway.

Soak up the sun from the aft switchback bed lounge as you peacefully relax atop supple, premium upholstery or enjoy a front row seat to the watersports action behind. Speaking of action, the XP3 performance package delivers strakes on all three logs and combine with and extended motor pod for greater handling, speed, and quieter operation.

Standard technology on the LE3 Sport enhances safety as well as fun with a rear-facing camera, stereo controls at the helm and stern, an in-dash multifunction display and premium, LED pushbutton switching for effortless control. With so many features and advancements, the hardest thing you’ll do all day is take it back to the dock.

Key Features

Power Bimini top

The powered Bimini top allows you to deploy or lower the Bimini top with just the push of a button.

Pull-out sprayer

After a swim, you can quickly rinse off using the pull-out washdown at the switch-back lounge.

Interior lighting

Illuminated drink holders and interior courtesy lighting help set the mood for any relaxing evening on the water.

Videos

Specifications

Standard | Metric

Length	7.72 m	25' 4''
Deck Length	7.09 m	23' 3''
Deck Width	2.59 m	8' 6''
Max. Recommended HP	250 HP
Fuel Capacity	196.82 L	52 gal.
Pontoon Log Length	7.04 m	23' 1''
Pontoon Log Diameter	66.04 cm	26''
Pontoon Log Material	0.100 5052 marine alloy
Max. Person Capacity	12 persons
Max. Person Weight	771.11 kg	1700 lbs.
Max. Person, Motor & Gear Weight	1179.34 kg	2600 lbs.
Interior Depth	74.93 cm	29.5''
Average Dry Weight	1530.87 kg	3375 lbs.
Average Package Weight	2671.66 kg	5890 lbs.
Package Height	2.64 m	8' 8''
Package Width	2.59 m	8' 6''

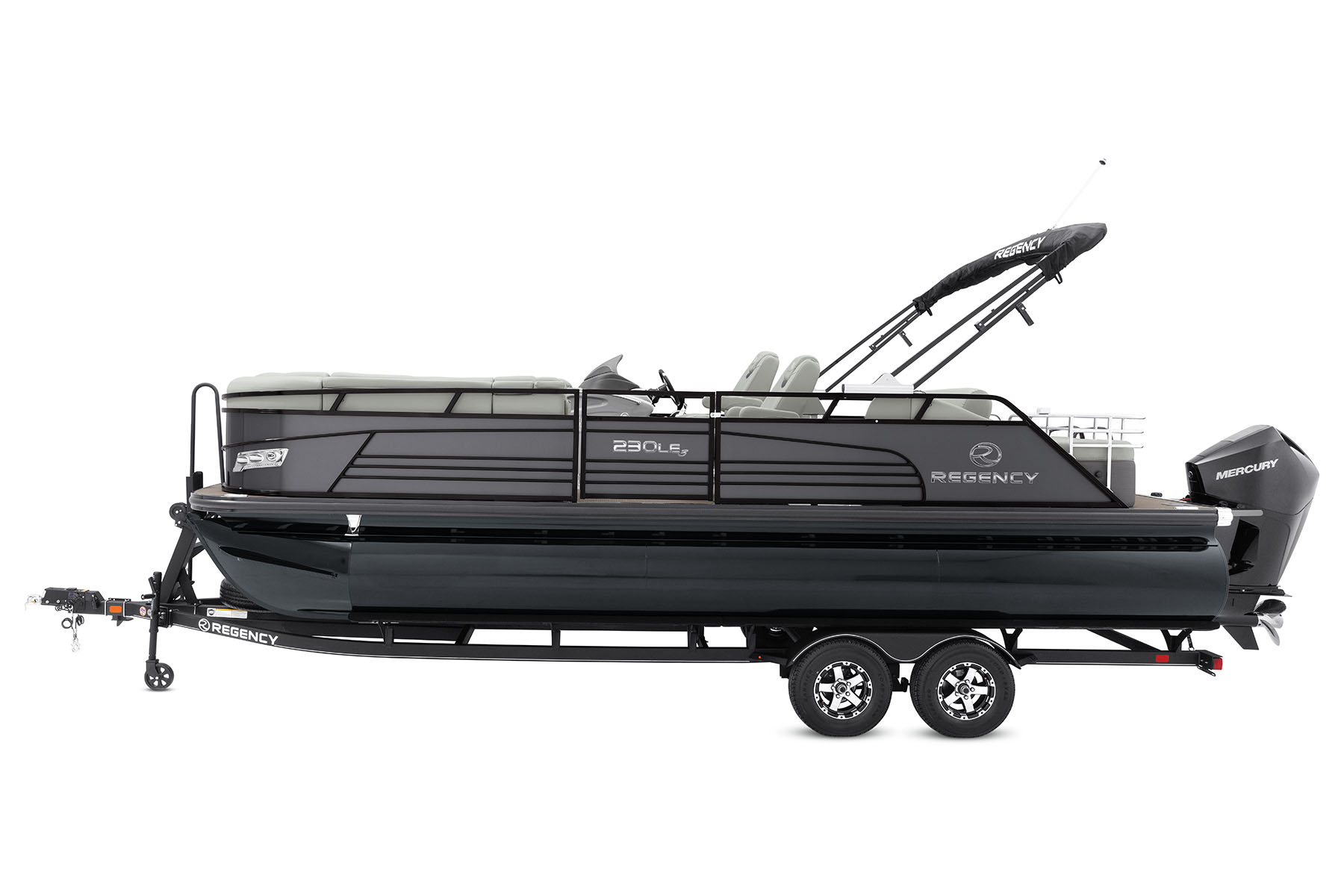

Towing Length	10.16 m	33' 4''
Storage Length	10.16 m	33' 4''

Motor Options

AVAILABLE MOTOR	PACKAGE PRICE	VIEW PRICE W/ PREP & FREIGHT
Mercury® Verado®
250 L Verado®	$90995 USD	Select Dealer

Features

Comfort, Convenience & Peace of Mind

10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty + provisions for transfer to a second owner
NMMA® certified
Aft-facing camera

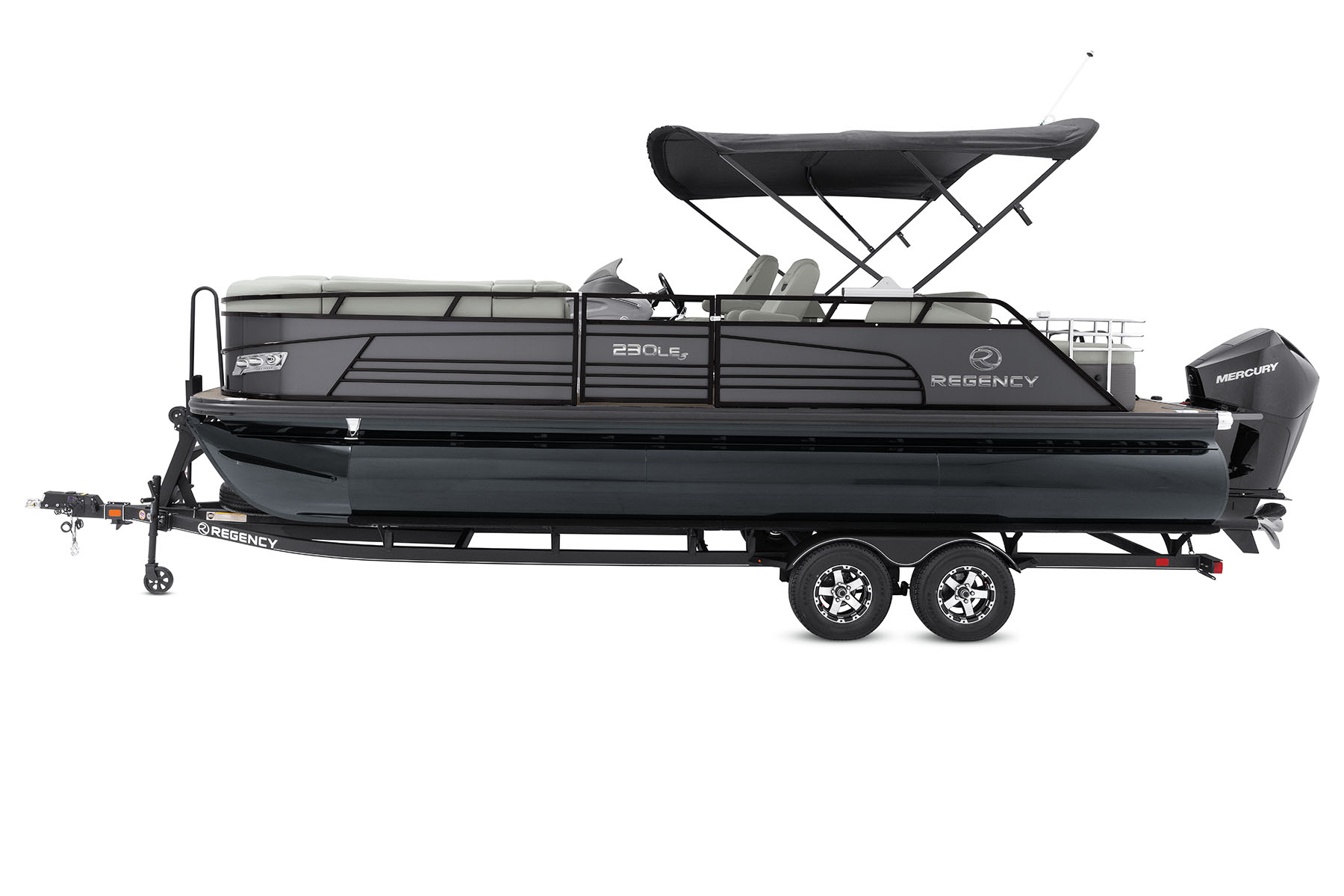

10' (3.05 m) Bimini top w/power up & down arm, DIAMOND COAT™, LED courtesy lights & protective boot
Storage pockets in Bimini top

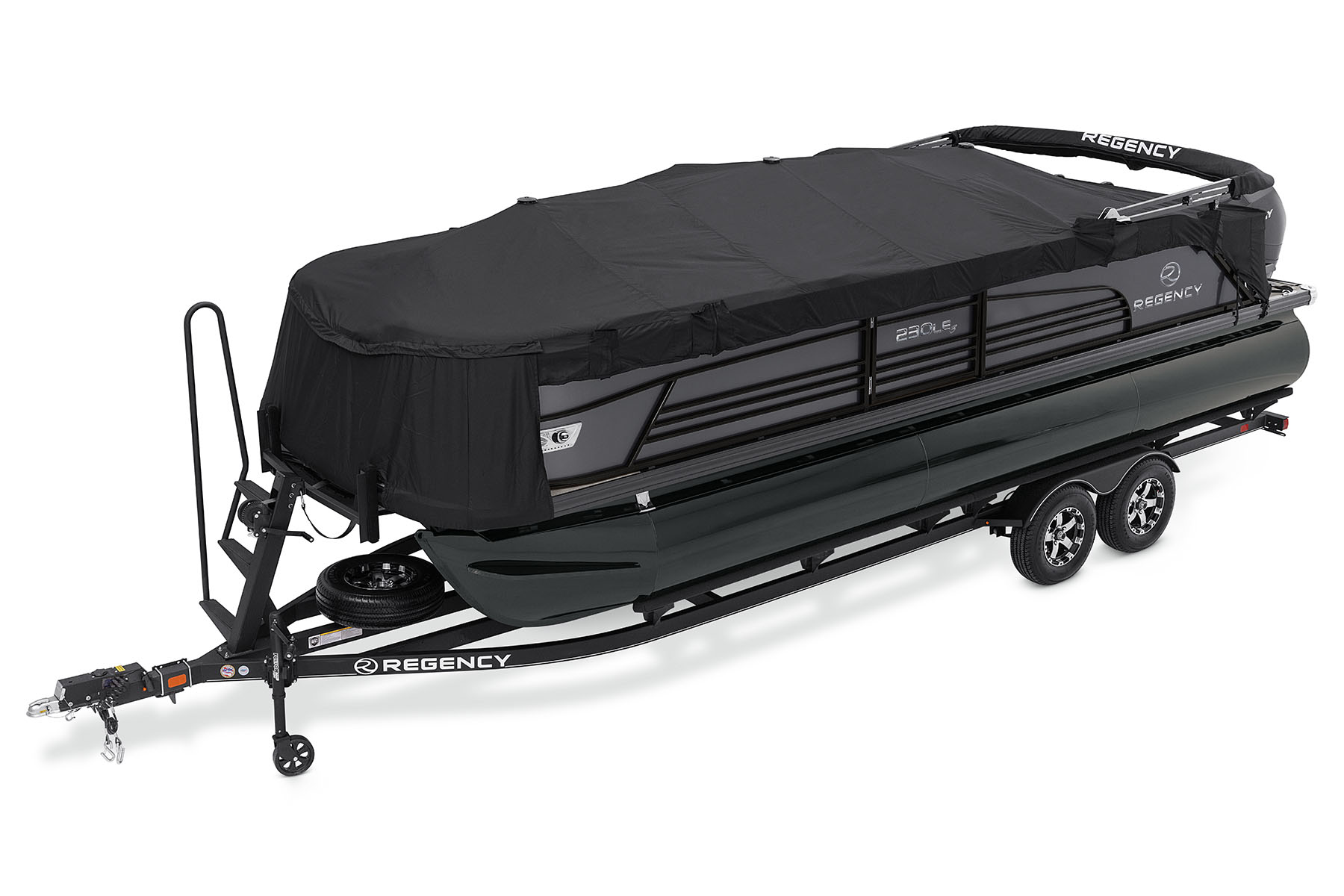

Snapless, trailerable mooring cover—Black
Stainless steel gate latches
Ergonomic multi-density upholstery foams for all-day comfort
4 folding mooring cleats
Motor-stop safety lanyard
Fire extinguisher
Horn

Console

Console w/Medallion® Viper III multifunction capacitive touch digital dash, vinyl-wrapped brow, forward integrated armrest for bow starboard couch & backlit chrome decal accents
Deluxe sport steering wheel
Power-assisted tilt hydraulic steering

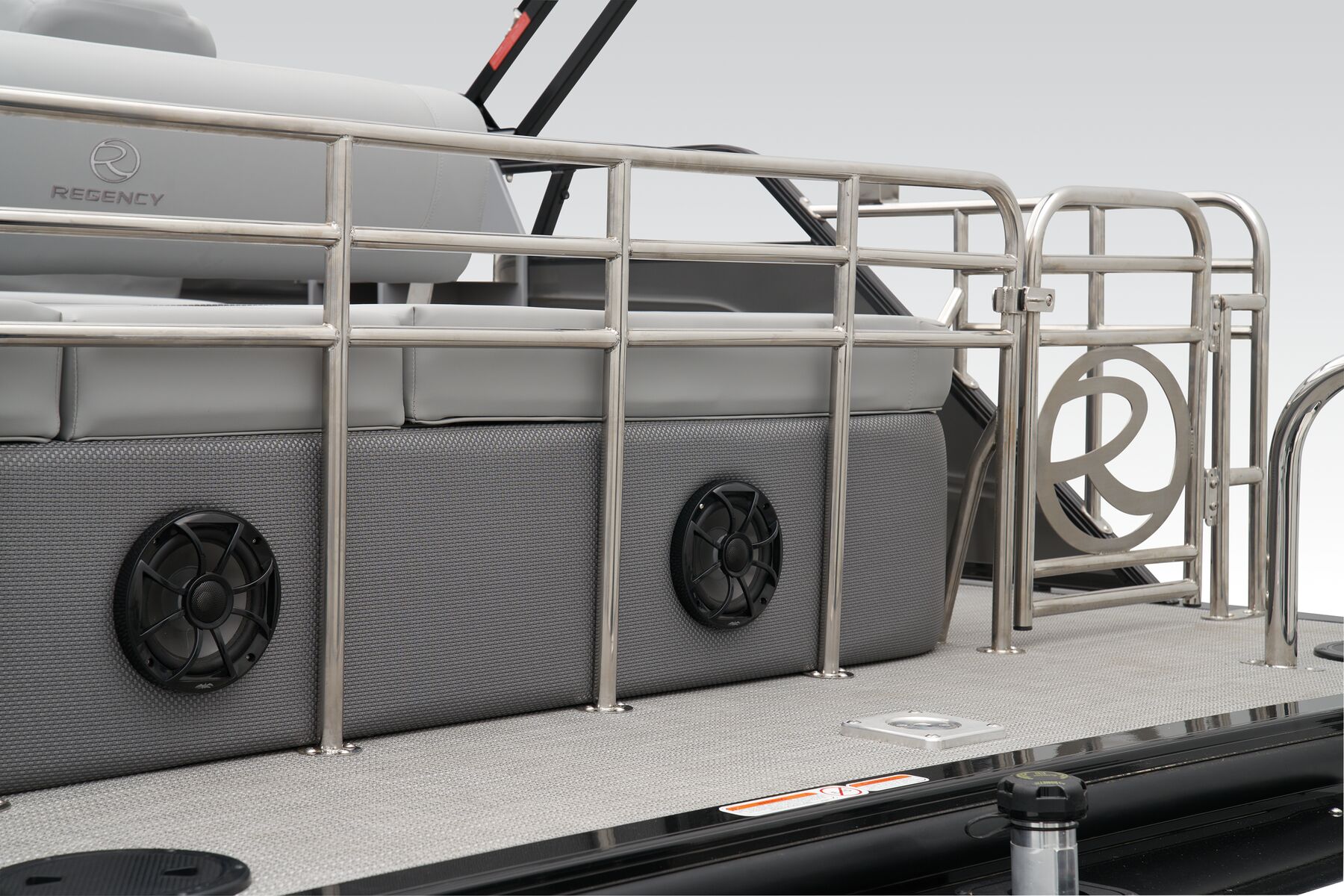

Viper III stereo & remote w/Wet Sounds® amp & speakers
Flip-out storage compartment
Designated mobile phone holder
Below-console cooler storage space w/door (cooler not included)
Back-lit switch panels

Interior

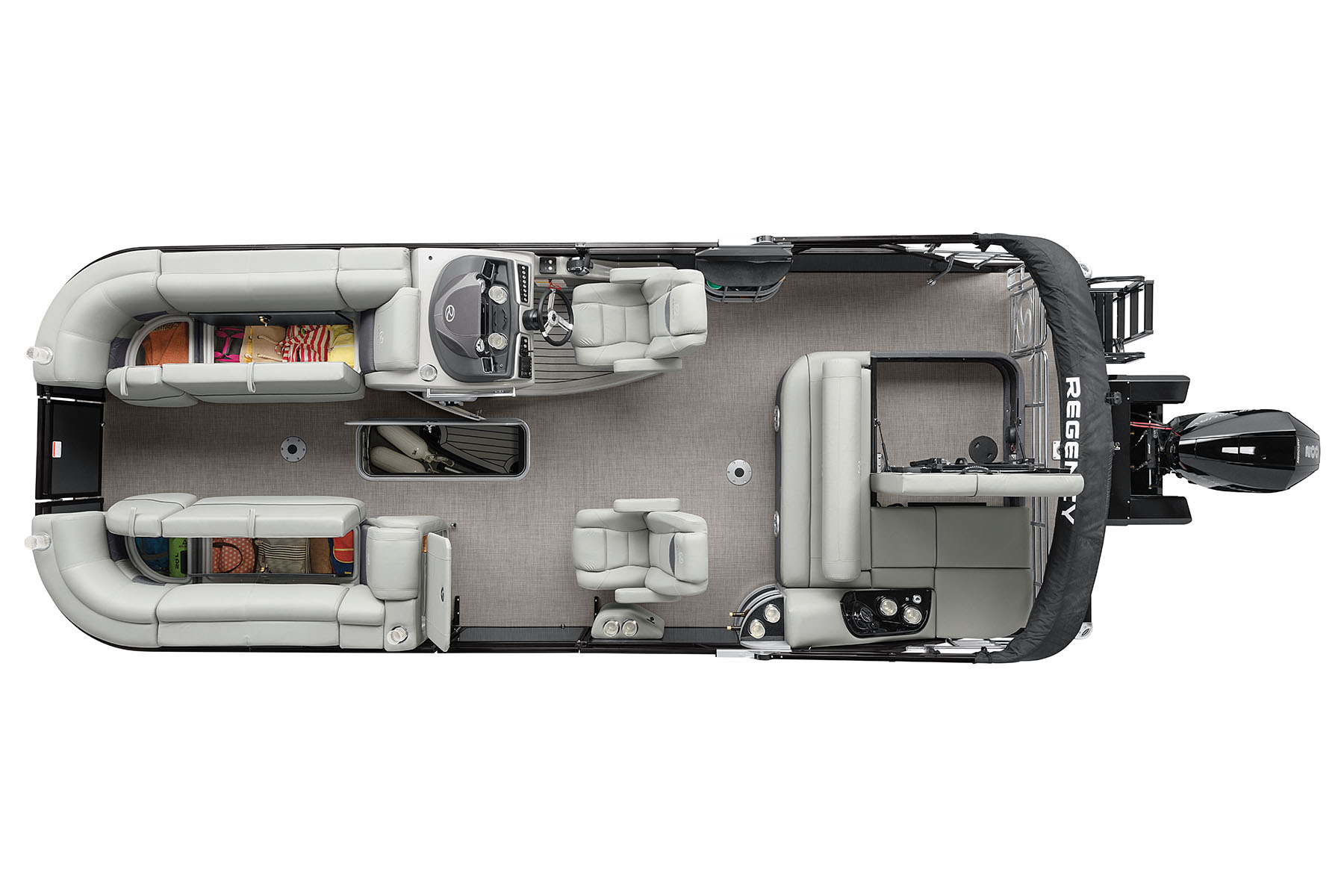

Patented STOW MORE™ storage system w/hold-open hatch springs
All upholstery foam wrapped w/moisture-barrier to prevent moisture intrusion
Rotomolded furniture backs & bases for resistance to the elements
Pillow-top construction for lounges using the REGENCY® multi-density foam package
REGENCY®-exclusive Suspension System, furniture bases & interior accents
2 locking lids under lounge cushions
Wraparound bow port lounge w/STOW MORE™, deep cushions, pillowtop backs, lumbar support, lighted lockable storage, 12V outlet & lighted drink holders
Wraparound bow starboard lounge w/STOW MORE™, deep cushions, pillowtop backs, lumbar support, lighted lockable storage, 12V outlet & lighted drink holder
Easy-access trash receptacle in bow starboard lounge

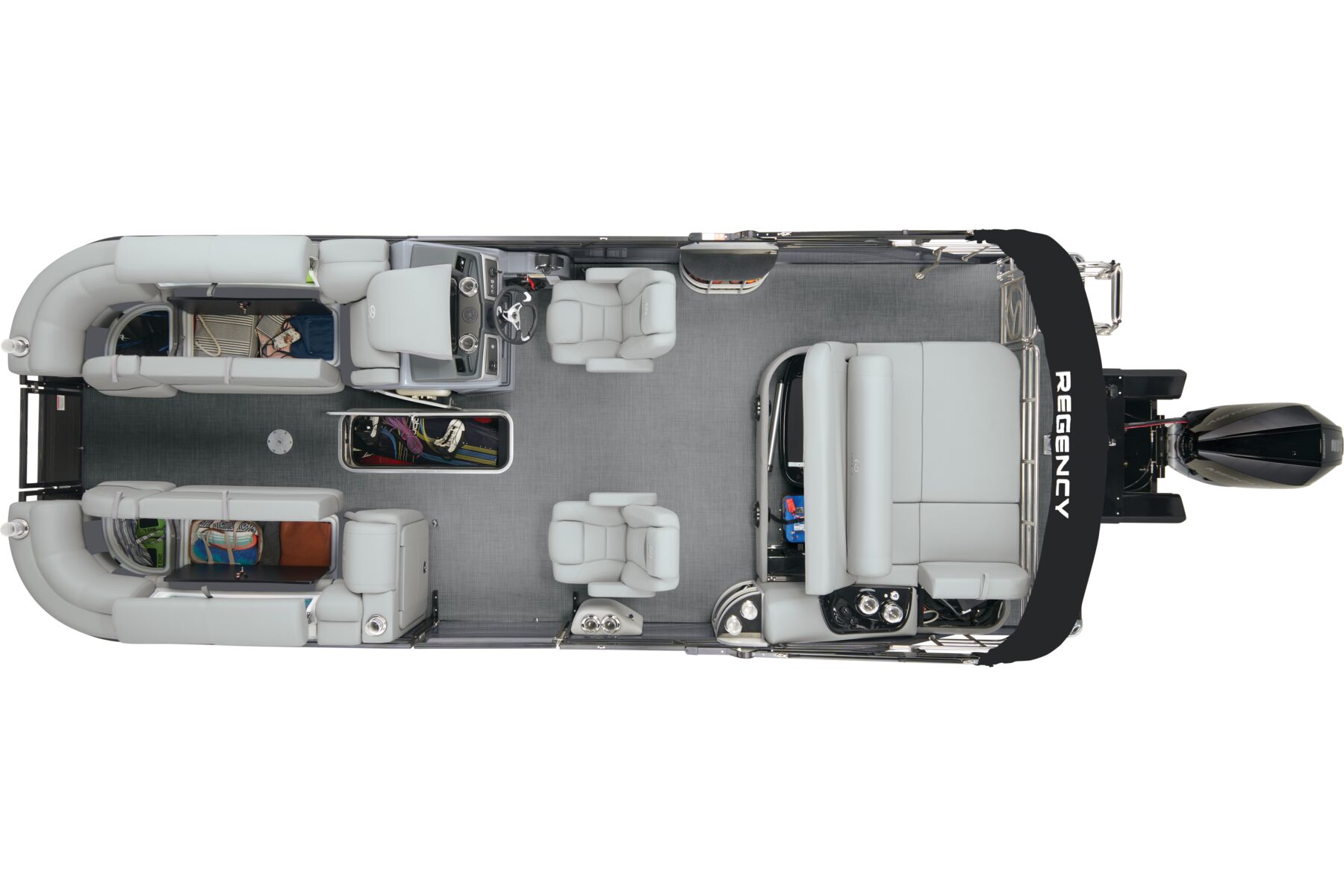

88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/NEW spaghetti mat

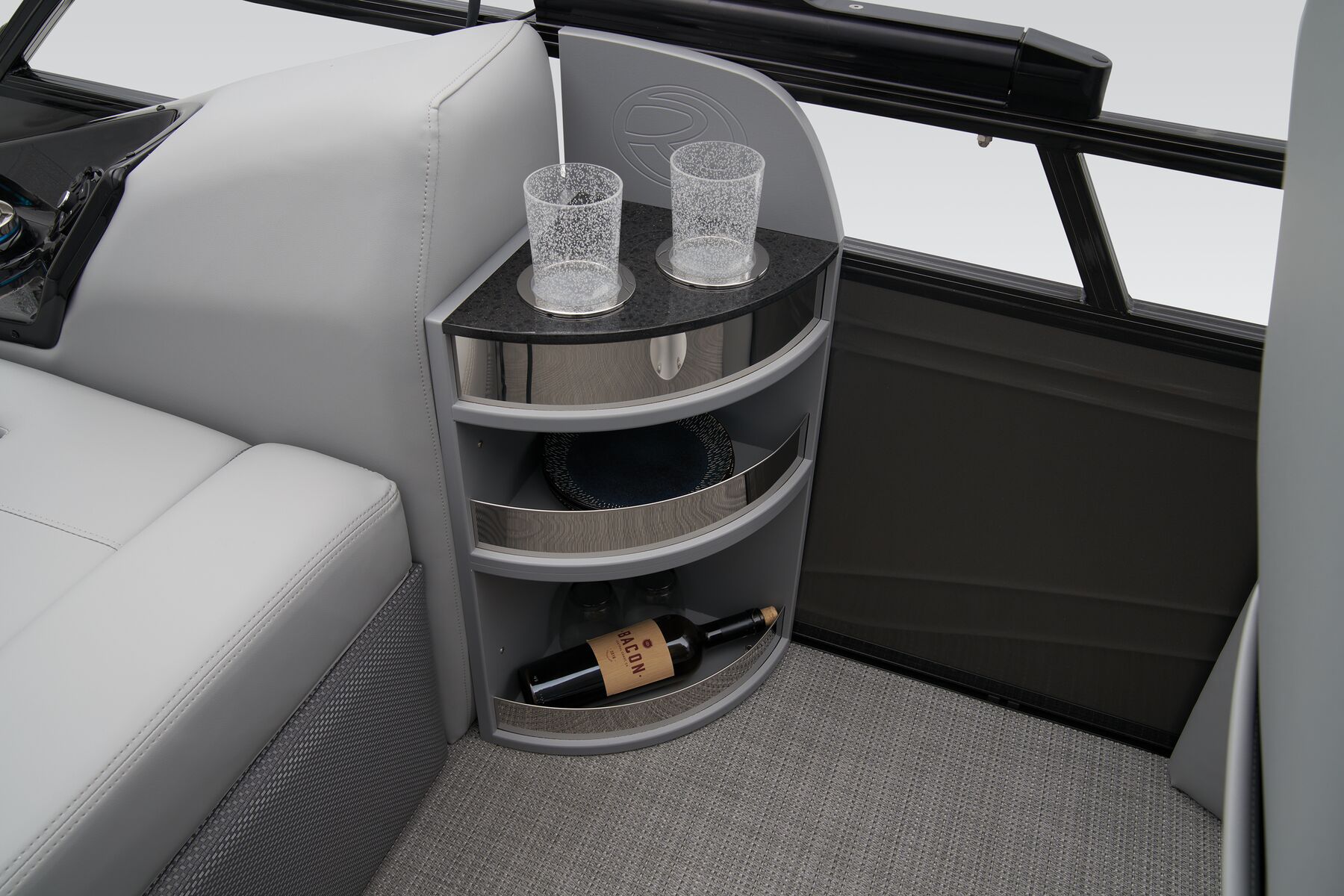

Port & starboard storage nooks w/stainless steel accents
Oversized, adjustable, reclining & swiveling captain & co-captain chairs w/lift-assist, self-leveling arms & ventilated storage pouch on back
Aft switch-back lounge w/raw water washdown sprayer, armrest w/stereo remote, underseat storage & lighted drink holders
Pop-up changing room below aft lounge
Full-width aft swim deck
Removable tournament-style ski tow pylon
Luxurious cool-touch, padded woven flooring
2 movable drink holders/armrests
Lighted, removable table w/simulated teak surface & molded-in drink holders (fore & midship pedestal base locations)

Performance

XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
Nose cone & motor pod wave/spray deflectors for a drier ride
Factory-matched stainless steel propeller

Construction & Exterior

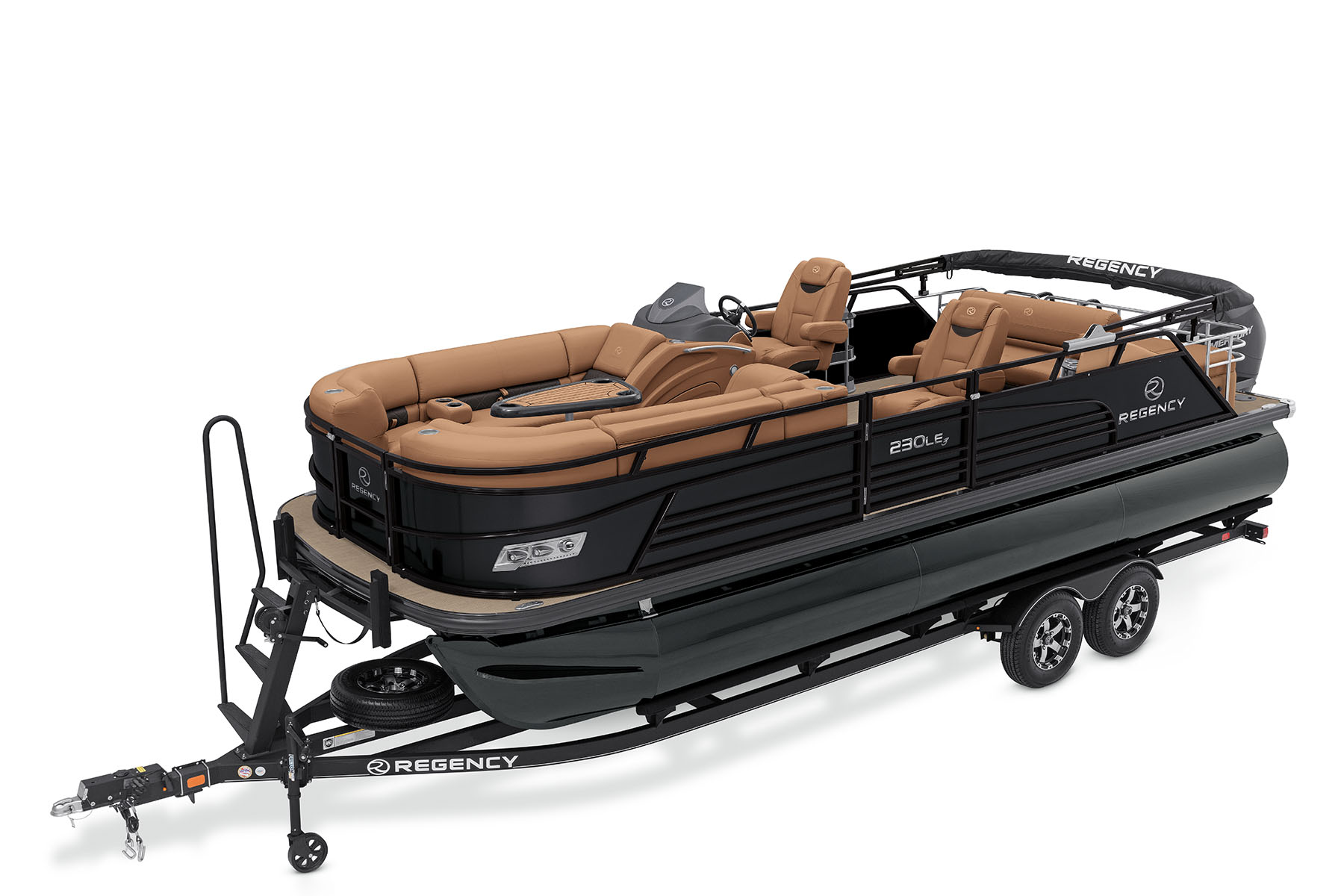

Standard color choice 1: Black fencing–Black logs & rails–Tan interior

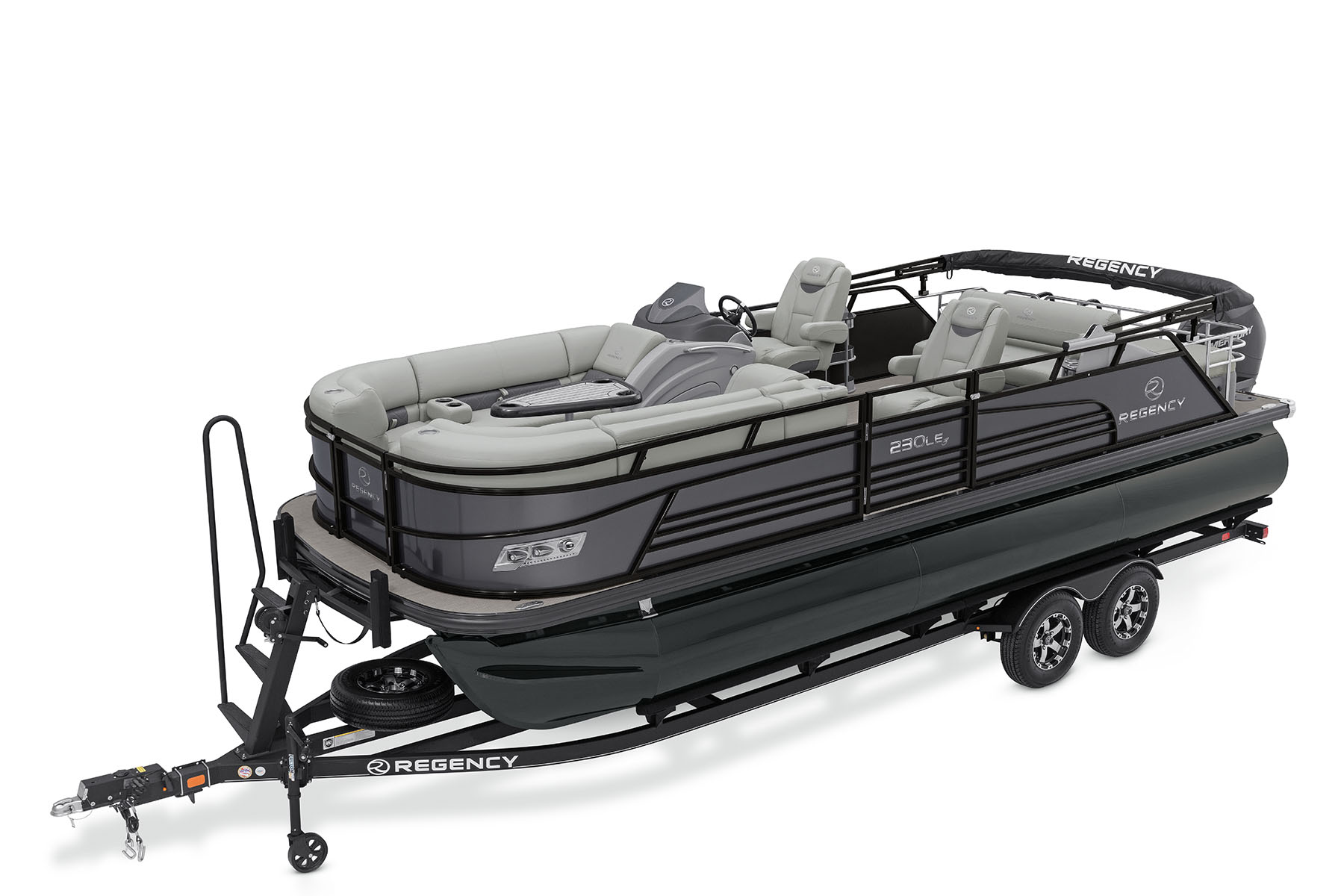

Standard color choice 2: Charcoal fencing–Black logs & rails–Platinum interior

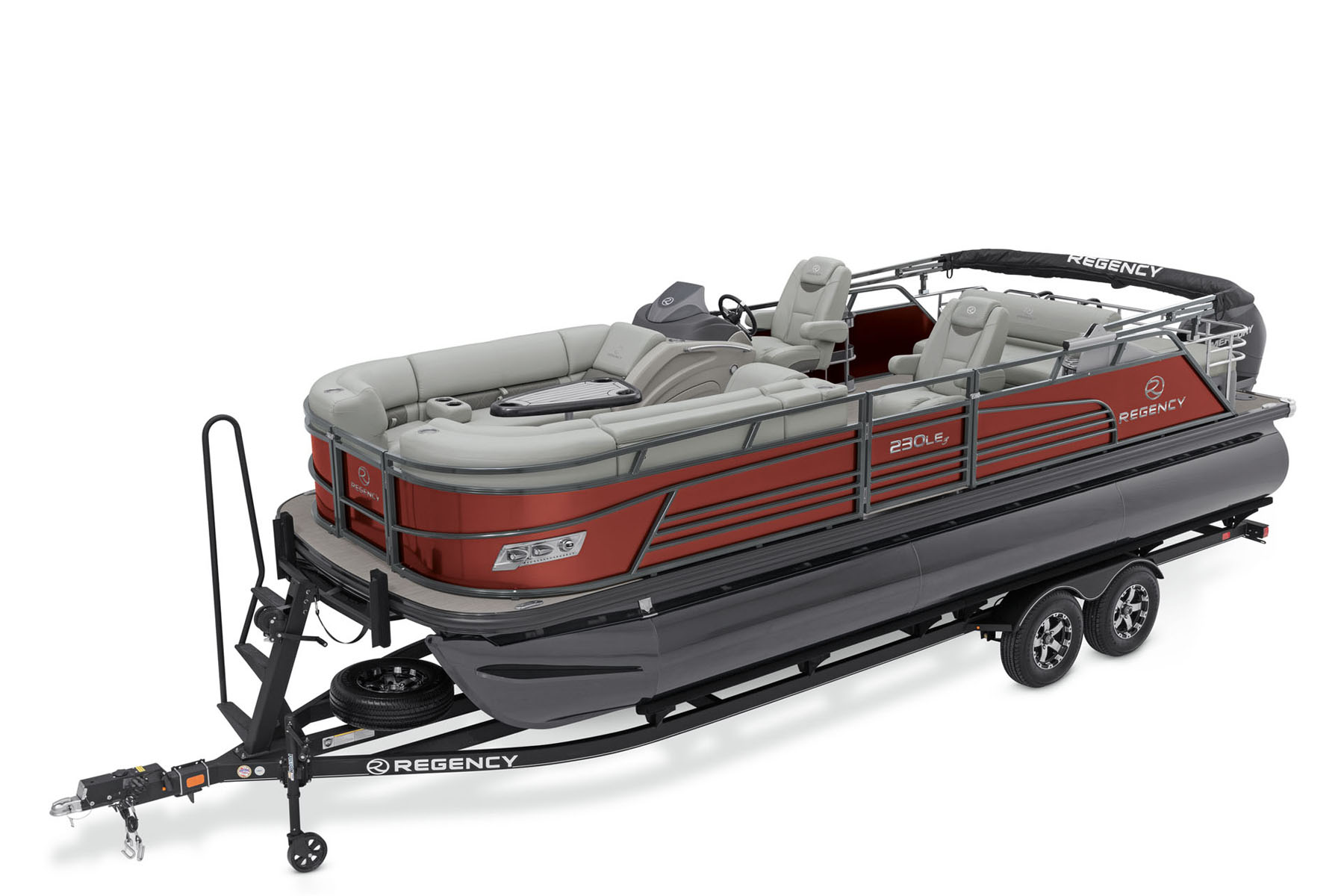

Standard color choice 3: Copper Red fencing–Black logs & rails–Tan interior
TRACK FORMED™ stylish creased fencing
Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
3 powdercoated 26" (66.04 cm) diameter high-performance multichambered pontoon logs w/welded-in lifting strakes & internal bracing for additional strength
DIAMOND COAT™ 2.0 fence railing, deck support brackets & pontoon logs for a long-lasting, lustrous finish
Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
Factory-installed underpinning (under-deck shielding) for improved performance
Distinctive 3-dimensional REGENCY® side graphics
1-piece, full-length extruded M-bracket for maximum floor support
Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
1.25" (3.18 cm) aluminum fence rails for a distinctive look, strength & durability
Elevated fence panels for drainage & ventilation
Sound- & vibration-deadening fence insulation for a quiet ride
All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
Heavy-duty extruded powdercoated rub rail w/oversized insert & corner castings
All-aluminum box-beam transom for strength, longevity
Reinforced bow & stern deck structure
Port wheelchair-access gate

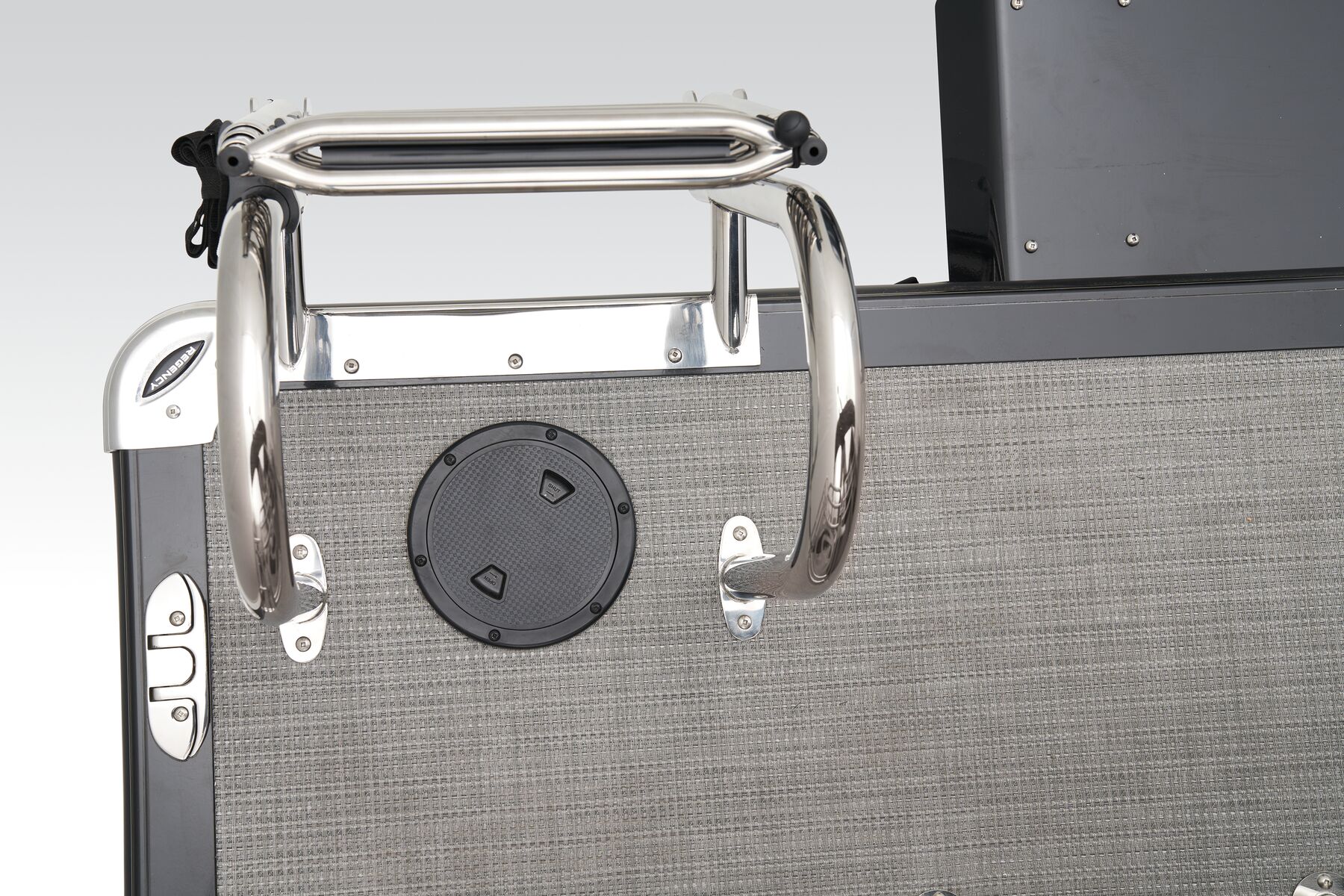

Telescoping stainless steel boarding ladder w/framed platform & grab rails

Electrical

500 GPH (1892.71 LPH) Ultima auto bilge pump
LED navigation & docking lights/shroud w/LED accents
Lighted storage throughout
Lighted drink holders
Integrated USB ports in drink holders for convenient charging

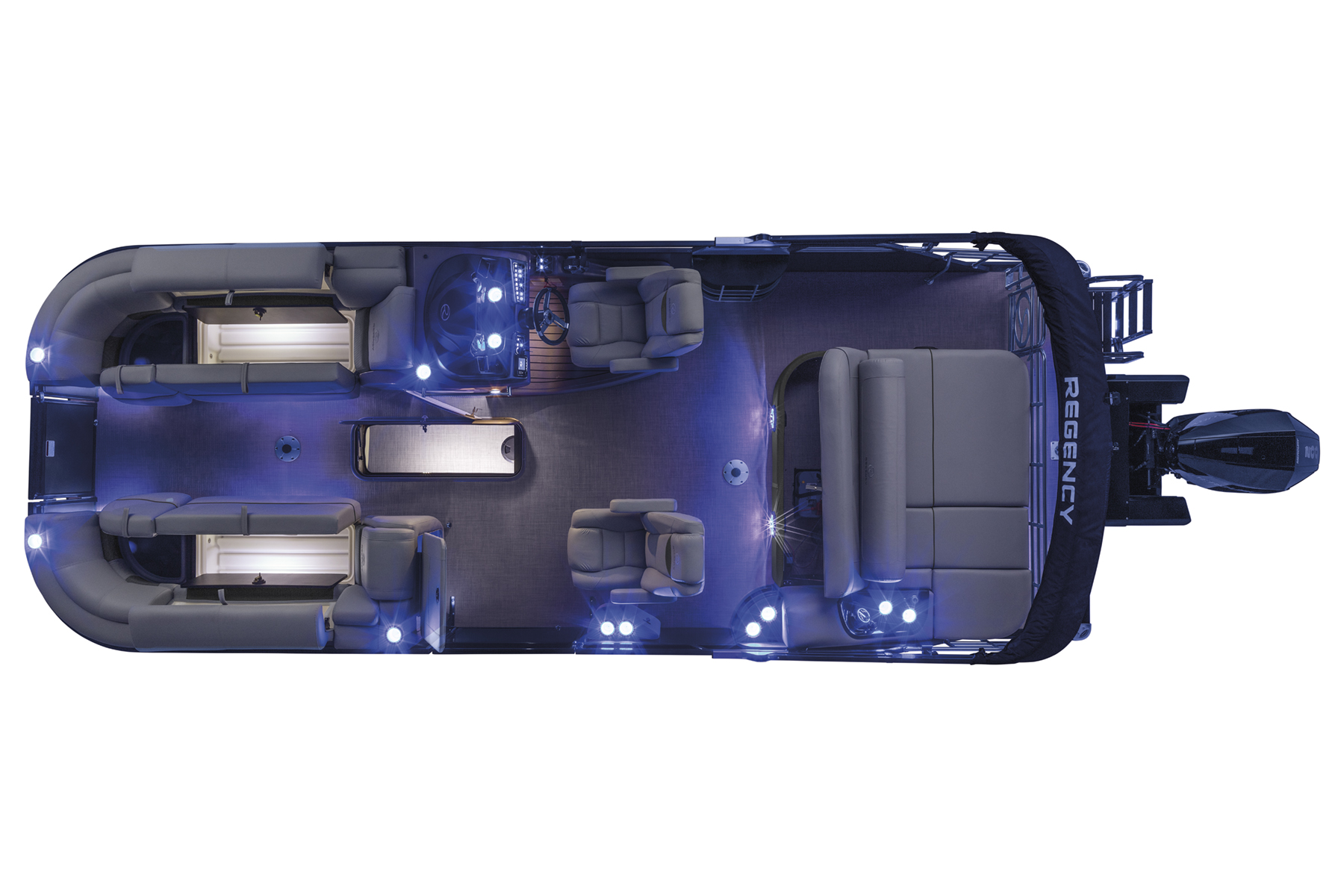

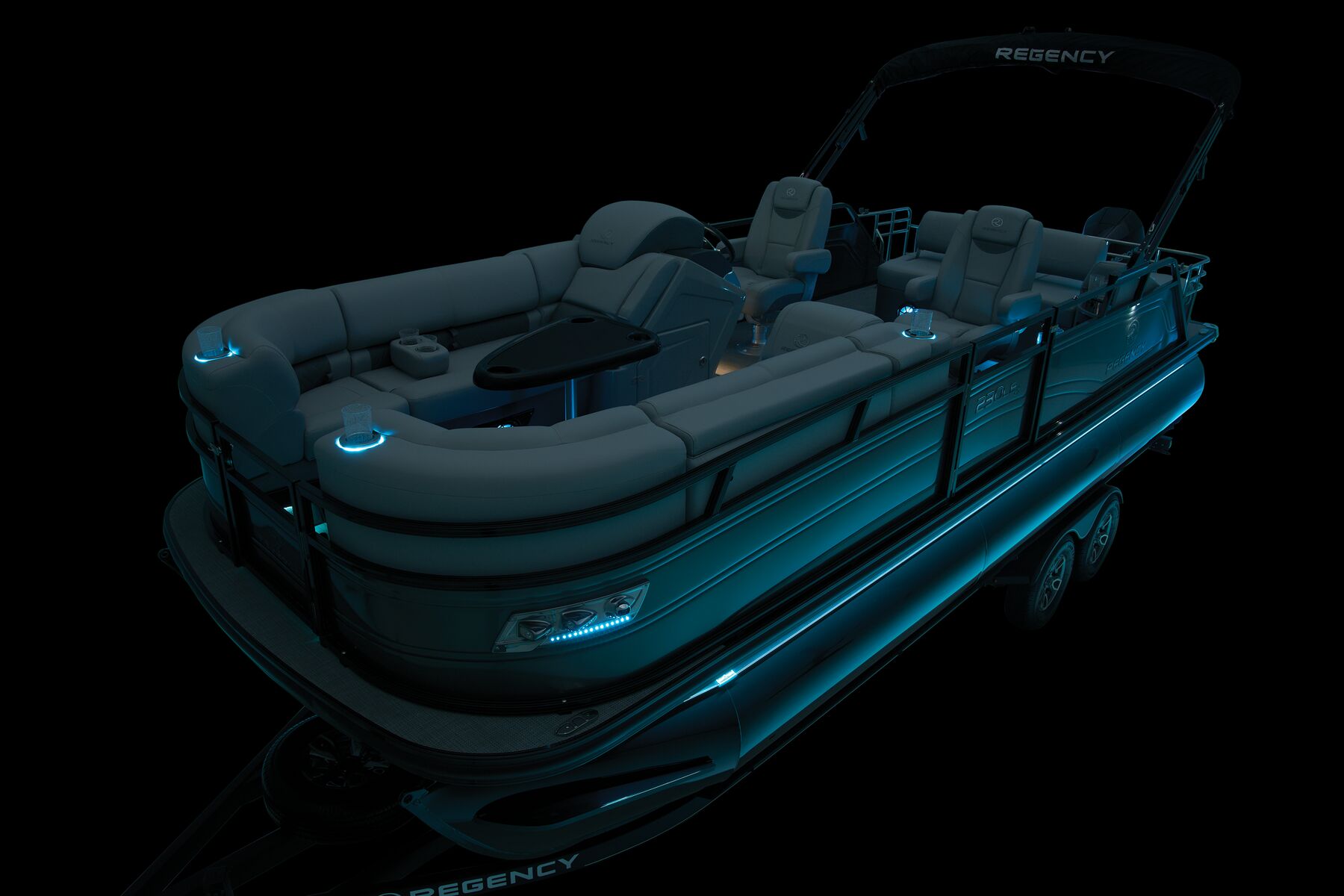

Blue LED courtesy lighting throughout interior—around lounge bases, drink holders & speakers
LED log lighting in Blue
Rear lounge arm switch panel for stereo speakers
Electric on-demand water pump for raw water washdown
1 Interstate® cranking battery & 1 house battery w/mounting trays
Lithium-capable 6-amp onboard battery charger
Easy-to-access, automotive-style fuse panel
12V outlets
